Our Test Protocols

We Test Building Materials Rigourously for High Accuracy and Optimum Results

Tests undertaken at Ignis Labs

AS 1530.1: For non-combustibility AS 1530.2/ISO 11925/UL 94 : For flexible sarking (Flamability Test) AS/NZS 1530.3: For material fire hazard properties AS 1530.4: Pilot test for wall elements and penetrations fire resistance levels. AS/NZS 3837: Cone calorimeter testing for material group numbers ISO 9705: For internal room corner testing ISO 9239: For critical radiant heat flux of flooring material AS 5113: For external wall fire spread ASTM D5630: For plastic core content ISO 1716: For material heat of combustion



Document Required



  • Vendor Form

  • Small Scale Request Form

  • Test Information Form

  • Safe Delivery Form

AS 5113 - For External Wall Fire Spread

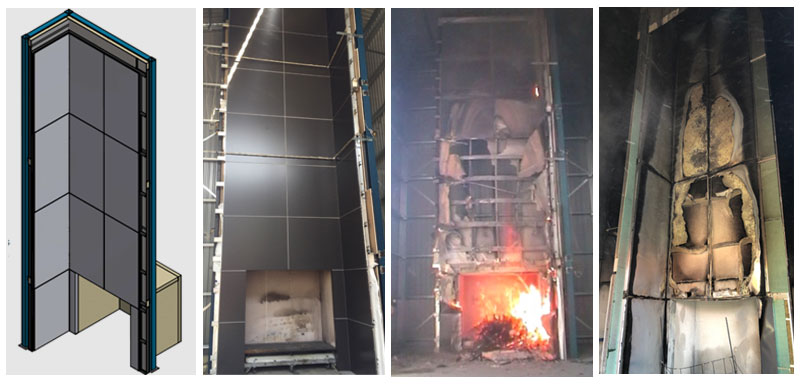

External wall testing occurs in accordance with AS 5113 with testing to BS 8414. The test rig simulates an external wall with a return wall. The rig is over 9m tall with the main wall 3m wide and the wing wall 2m deep. Test samples can be applied to two layers of 13mm fire grade plasterboard or as a full wall system.



The BCA references testing to AS 5113 through the verification Method CV3, where a performance analysis is required for verification of the products use. It is important to note that the wall is a system made of multiple elements where each one has a unique characteristic which may influence the results.





The external wall elements do not need to be conditioned but do need to be kept in a clean and dry state prior to testing. There are set parameters for when the test can be undertaken which excludes when its raining, windy or during high or low temperatures.



Ignis Labs has developed a library of solutions for various materials to be incorporated into suitable wall designs that are practical and cost efficient. Ignis Labs is also working on a solution for retrofit installations where we work with building owners to understand their current building compliance and risk options to improve the safety of the building.



For existing buildings, the following process can be undertaken between Ignis Labs and Ignis Solutions:



  • Identification of materials

  • Evaluating the exposure

  • Validation testing

  • Remedial actions
