Our Test Protocols

We Test Building Materials Rigourously for High Accuracy and Optimum Results

Tests undertaken at Ignis Labs

AS 1530.1: For non-combustibility AS 1530.2/ISO 11925/UL 94 : For flexible sarking (Flamability Test) AS/NZS 1530.3: For material fire hazard properties AS 1530.4: Pilot test for wall elements and penetrations fire resistance levels. AS/NZS 3837: Cone calorimeter testing for material group numbers ISO 9705: For internal room corner testing ISO 9239: For critical radiant heat flux of flooring material AS 5113: For external wall fire spread ASTM D5630: For plastic core content ISO 1716: For material heat of combustion



Documents Required



  • Vendor Form

  • Small Scale Request Form

  • Test Information Form

  • Safe Delivery Form

AS/NZS 1530.3 for Material Fire Hazard Properties

(Radiant Heat Testing)

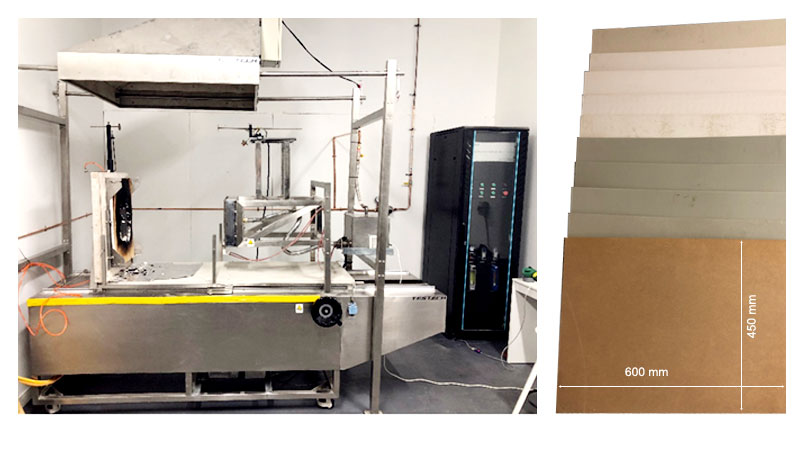

The radiant panel test as described by AS/NZS 1530.3 involved a sample being progressively moved closer to a radiant heat panel. The movement of the sample is stopped when ignition occurs.



The test measures the following elements.


  • Ignitability: 0-20

  • Flame Spread :0-10

  • Heat Release: 0-10

  • Smoke Release:0-10



The test duration is 20 minutes. Six samples are tested, and an additional three samples can be tested if required.





The BCA sets requirements for flame spread and smoke release. There are two applications under the BCA:



  1. Clause C1.9(e)(v) for painted metal surfaces. To maintain use of the metal surface where non-combustible material is required it is to have a spread of flame index not greater than 0.

  2. Clause 7, Table 4 of BCA Specification C1.10 requires other materials and insulation to have a spread of flame index <9 and a smoke developed index < 8 if the spread of flame index is more than 5.



Ten samples are required for the test being 450mm wide x 600mm high.



The test samples are required to be conditioned. This can take up to a week with testing occurring after the conditioning is complete.
