Our Test Protocols

Tests undertaken at Ignis Labs

AS 1530.1: For non-combustibility AS 1530.2/ISO 11925/UL 94 : For flexible sarking (Flamability Test) AS/NZS 1530.3: For material fire hazard properties AS 1530.4: Pilot test for wall elements and penetrations fire resistance levels. AS/NZS 3837: Cone calorimeter testing for material group numbers ISO 9705: For internal room corner testing ISO 9239: For critical radiant heat flux of flooring material AS 5113: For external wall fire spread ASTM D5630: For plastic core content ISO 1716: For material heat of combustion



Document Required



• Vendor Form


• Small Scale Request Form or AS ISO 9705 Request Form


• Test Information Form


• Safe Delivery Form

ISO 1716 - For Material Heat of combustion

(Material Properties Testing)

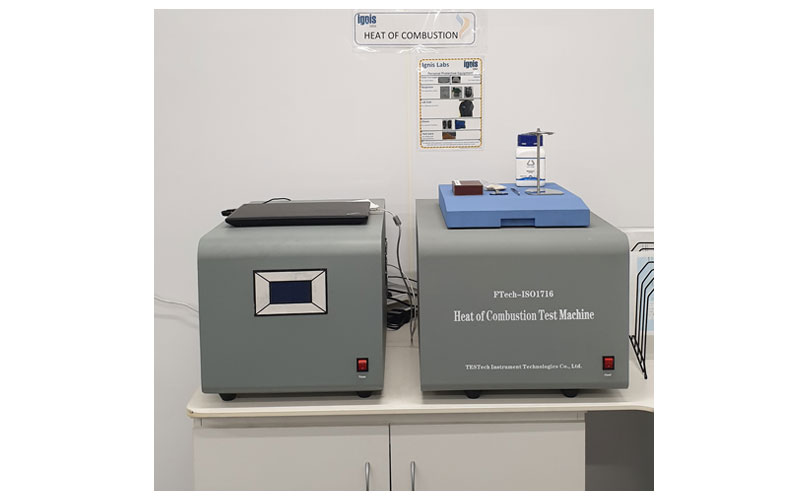

Ignis Labs undertakes testing in accordance with ISO 1716 to establish a materials heat of combustion. The heat of combustion tests determines the gross heat of combustion (being the energy content of a material) through a bomb calorimeter.



Homogenous and multi layered building products, for example insulation products of mineral wool with or without facings, fibre reinforced cement, silicate boards, sealing compounds etc. are tested under this standard. To complete the test, a minimum of one test specimen with the dimension 250 mm x 250 mm with a mass 50 g is required.

A small test specimen with a specified weight is combusted completely during constant volume and oxygen atmosphere inside a high-pressure calometric bomb. The combustion of the test specimen heats up water, whose temperature rise gives a measurement of calorific potential.
